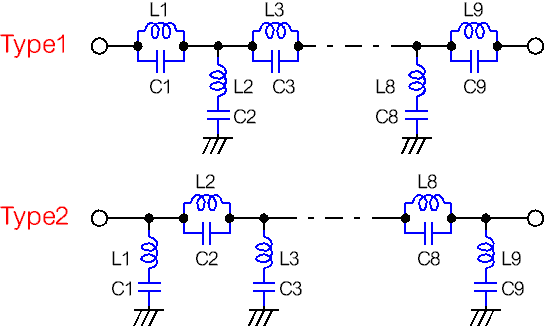

Chebyshev BEF Calculator
切比雪夫帶阻濾波器設(shè)計(jì)
| [ How to use ] |
1. Input resonant circuit number (n), center frequency (fc), bandwidth (BW),
characteristic impedance (Zo), ripple, and click on [ Calculate ] button.
2. A calculation result is indicated.
[ Note ] The number of resonant circuits is only an odd number individual.
(Even if an even number is inputted to n, 1 is added automatically,
and changed into the odd number.)
|
|
|
|
