CAD Integration and Geometry Sharing

CAD model comes into ANSYS Electromagnetics as User Defined Model (UDM).

The input to ANSYS Electromagnetics from CAD is:

• Geometry/Topology with persistent IDs

• CAD parameters

• Material assignment

• Attributes like name, and color

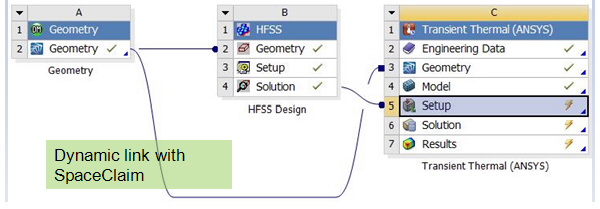

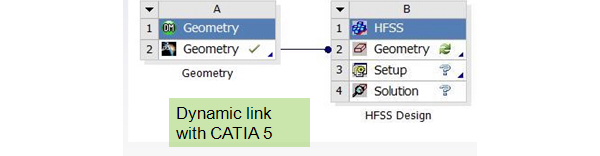

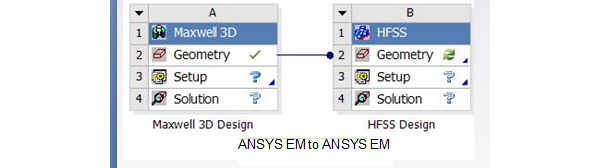

[spacer] [spacer] [spacer]

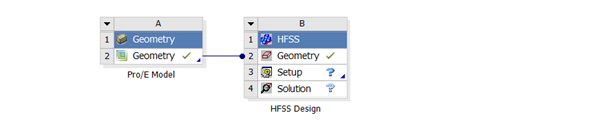

For example, in Workbench, a Pro/E Model can be linked to ANSYS.

[spacer]

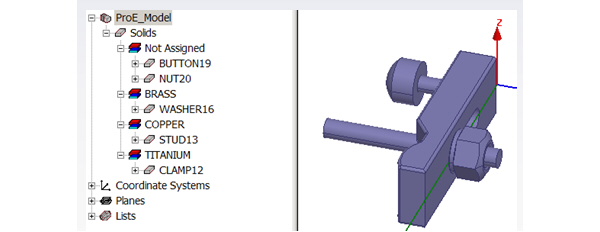

The geometry can then be viewed in HFSS as a UDM.

[spacer]

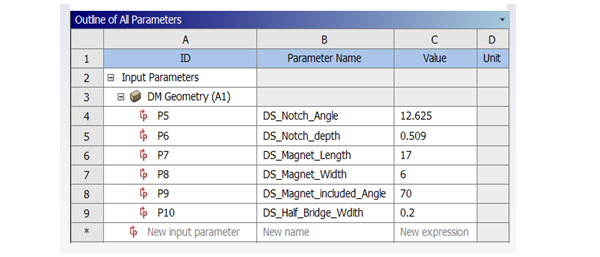

The CAD or WB model parameters appear in the Workbench:

[spacer]

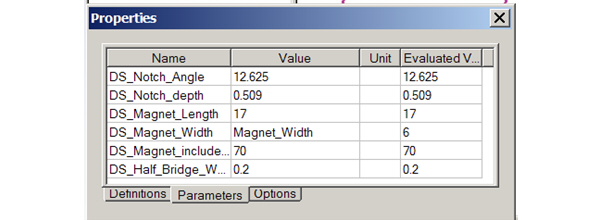

Though the ANSYS Electromagnetics CAD Integration, the linked UDM includes the same parameters.

[spacer]
