ANSYS Workbench Integration Overview > ANSYS EM CAD Integration through Workbench

Multiple Geometry Links for CAD Integration

With CAD Integration you can consume geometry from multiple upstream sources. The Source can be any of CAD or ANSYS Electromagnetics products. This creates a UDM for each geometry source.

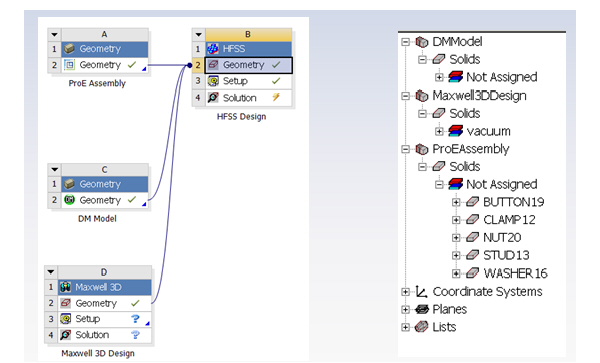

For example, the following figure shows a DM Model, a Maxwell model, and ProE model linked to HFSS in Workbench, and displayed in the HFSS History tree as three UDMs.
