Workbench Data Integration Overview

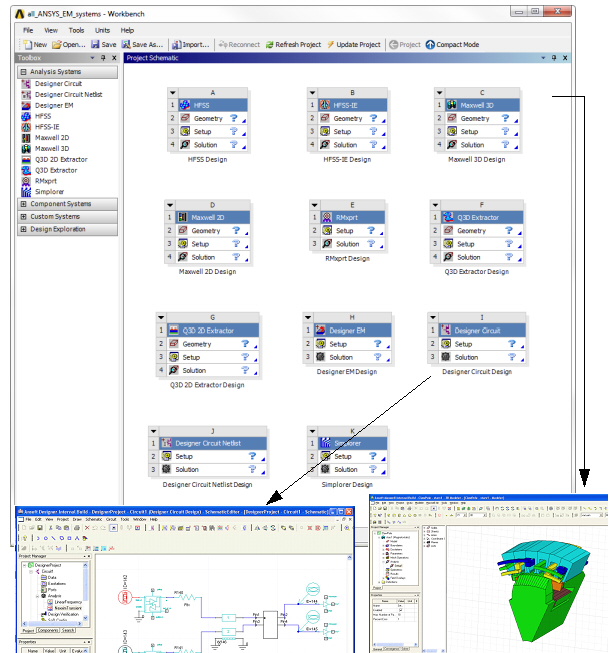

ANSYS EM data-integrated applications can reside on a Workbench Project Schematic as shown.

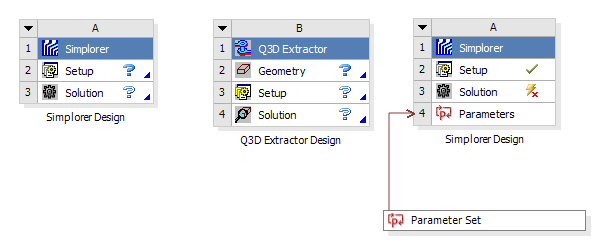

Objects, such as instances of ANSYS Electromagnetics projects, that are placed on a Workbench Project Schematic are referred to as systems. ANSYS Electromagnetics circuit/system products: Rmxprt 14.0, Designer 6.1, and Simplorer 10.0, appear on Workbench Project Schematics as systems with two “cells” – Setup and Solution. ANSYS Electromagnetics field products: HFSS 14.0, Maxwell 14.0, and Q3D Extractor, add an additional Geometry cell. If you invoke ANSYS DesignXplorer to use variables for refining a design, a Parameters cell is added with a link to the associated Workbench Parameter Set. Refer to the ANSYS 14.0 Workbench help for details on working with systems, cells, and parameter sets.

ANSYS Electromagnetics desktop products integrate with Workbench commands, services, and DesignXplorer in a similar manner. Here are some of the ways in which ANSYS Electromagnetics products integrate with Workbench:

• Adding new analysis systems

• Importing existing desktop projects

• Editing models

• Analyzing models

• Performing parameter studies

• Scripting

In addition to these major features, Workbench also allows you to Archive, Save, Backup, Duplicate, and Delete ANSYS Electromagnetics projects used in a Workbench project. Progress information and messages from integrated ANSYS Electromagnetics projects are also displayed in Workbench.

Note

Detailed information for how to use ANSYS Workbench 14.0 for these operations can be found in the ANSYS 14.0 documentation and online help.
