Working with the History Tree

The history tree in the 3D Modeler window lists all the active model’s structure and grid details.

You can perform the following tasks with the history tree.

• Expand or Collapse Groupings in the History Tree

• Group Items by Material in the History Tree

• Select Objects in the History Tree

• Use Shortcut Menus in the History Tree

• View Properties for History Tree Objects

• View and Edit Commands on History Tree Objects

• Control the View of Objects in the History Tree

• Select All Objects in a History Tree Group

• Upgrade Version

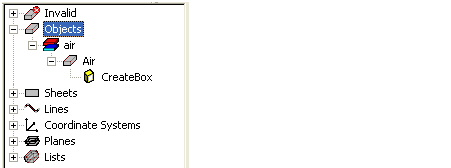

The history tree contains the following model details:

Invalid	Lists all invalid objects
Objects	Displays all the model’s objects and a history of the commands carried out on each object. By default HFSS groups objects by material. you can change this by selecting the Objects icon in the history tree and right-click to display the shortcut menu with the Group Objects By Material checkbox.
Sheets	Displays all the sheets in the model 3D design area. By default, HFSS groups sheet objects by boundary assignment. You can change this by selecting the Sheet icon in the history tree and right-click to display the shortcut menu with the Group Sheets by Assignment checkbox.
Lines	Displays all line objects included in the active model. See Drawing a Straight Line for information on how to draw a line object.
Points	Displays all point objects included in the active model. See Drawing a Point for information on how to draw a point object.
Coordinate Systems	Displays all the coordinate systems for the active model. See Setting Coordinate Systems for more information on this model detail.
Planes	Displays the planes for all the coordinate systems. When you create a coordinate system, default planes are created on its xy, yz, and xz planes.
Lists	Displays the object or face lists for the active model. By default, a list called "AllObjects" appears. Creating an object list is a convenient way to identify a group of objects for a field plot or calculation. Creating a face list is a convenient way to identify a specific set of surfaces for a field plot or calculation. See Creating an Object List

Note

While objects created in HFSS can always be classed in the history tree as either a solid, sheet, or wire some imported objects may have mixture of these. HFSS places such objects in an Unclassified folder in the history tree.
