HFSS online help > ANSYS Workbench Integration Overview
ANSYS Electromagnetics CAD integration is a Workbench feature available for ANSYS Electromagnetics 3D Products - HFSS, Maxwell and Q3D, as the ANSYS Framework. The feature is available only through Workbench, not available with standalone ANSYS Electromagnetics products.
ANSYS CAD integration provides a bi-directional dynamic link through Workbench, which makes it possible to get updated geometry from CAD and to modify CAD parameters in ANSYS Electromagnetics products to return updated geometry. The feature is non-associative due to a need to reassign boundaries if modified CAD model is to be used. The process creates a User Defined Model (UDM) for each geometry source

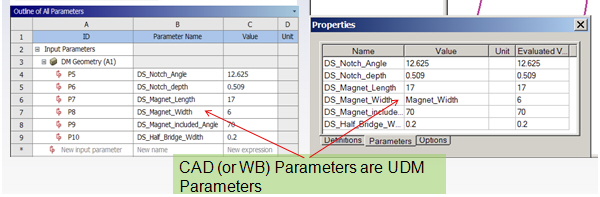

The User Defined Model (UDM) format makes it possible to exchange parameters.
See here for further description of the UDM feature and function.
ANSYS Electromagnetics CAD integration makes it possible to consume geometry from multiple upstream source which can be any CAD or ANSYS Electromagnetics product. This feature supports direct interfaces with all major CAD systems.
Pro/E Wildfire
UG NX
CATIA V5
SolidWorks
ANSYS Design Modeler (DM)
ANSYS SpaceClaim Direct Modeler (SCDM)
CAD software must be installed on user machine
Not required on solve nodes
Platforms Supported
Windows 32 bit
Windows 64 bit
Linux is NOT supported but it is possible setup project on windows and use Linux nodes for solves.
See the following sections:
CAD Integration and Geometry Sharing
Bi-Directional CAD Integration
Multiple Geometry Links for CAD Integration
Important Geometry Options for CAD Integration
